CNC Machine manufacturing-processing-machinery cnc lathe machine tool automatic cnc lathe CNC Lathe Use: Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standard

Cnc Turning Machine - Cnc Lathe Machine


CNC Machine manufacturing-processing-machinery cnc lathe machine tool automatic cnc lathe CNC Lathe Use: Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standard
Send Inquiry

cnc machine manufacturing-processing-machinery cnc lathe machine tool automatic cnc lathe

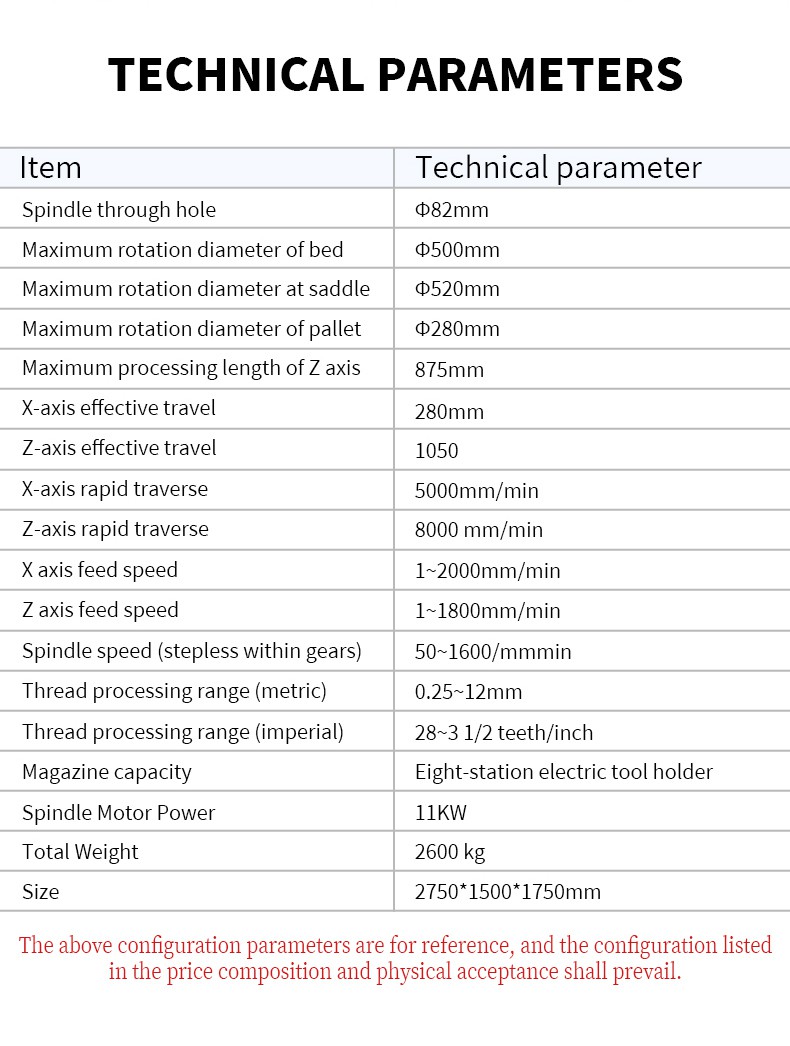

Product main technical specifications:
1. Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure the long-term stability of processing accuracy.

CK618001CK618003CK6180041

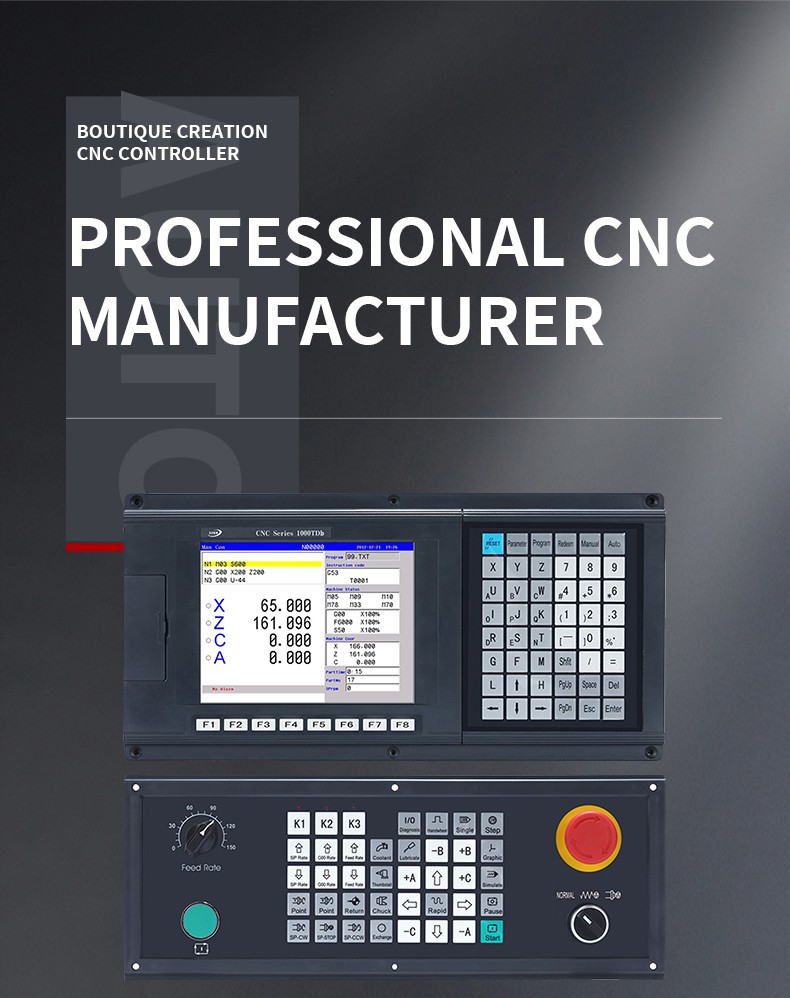

FEATURES OF MATCHED CNC CONTROLLER:
(1.)2-5 Axis Fully English Type CNC lathe controller;
(2.)800x600 8.4inch real color LcD displayer;
(3.)Electric Turret & Binary code turret,Max: 99 pcs tools;
(4.)Support ATC , Macro function and PLC function;
(5.)Max speed is 60m/min, feeding speed is 24m/min;
(6.)Adapted servo spindle can realize spindle continous position,
(7.)High anti-jammingswitch power(100V-240VAC 50Hz/60Hz→ 24VDC);
(8.)64MB Memory,56M user store room;
(9.)With USB interface it supports file operation in flash disk,system confiquration and software upgrade
(10.)Position Control Mode:Pulse+Direction/AB Phase,Dual Analog voltage output of 0~10V
(11.)32 bits ARM microprocessor+FPGA Technology;
(12,)Basic 1/0:36X36, can be edited freely;
(13,)Cutter offset :
