Turning and Milling Machines automatic cnc lathe machine

One of the key advantages of the SZGH-36Y turning and milling machine is its versatility. It is suitable for a wide range of applications, from small-scale production operations to large-scale industrial use. This makes it an ideal choice for any business looking to improve its operational efficiency, reduce costs, and boost profitability.

"Revolutionize Your Manufacturing with the Precision and Versatility of Turning and Milling Machines"

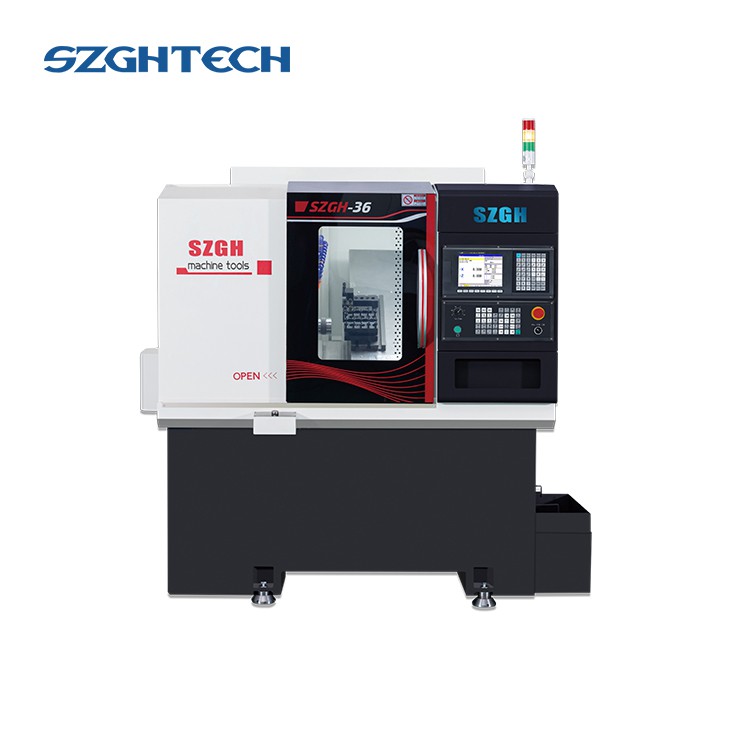

SZGH-36J 1000TDb

Configuration parameters:

X-axis travel:	700mm
Z-axis travel:	230mm
Cutting feed speed:	0.001-500mm/rev
X/Z axis displacement speed:	20m/min
X/Z repeated positioning accuracy:	0.001mm
X/Z axis guide rail:	25 Taiwan Hiwin/Kate linear guide rail
X/Z axis screw:	25 ground ball screw
X-axis servo motor:	130-1.0KW 4NW with brake
Z-axis servo motor:	130-1.0KW 4NW without lock
Spindle speed:	3000rpm/4000rpm
Spindle hole diameter:	25mm/36mm
Clamping method:	25/36 chuck /6 inch hydraulic chuck
Main motor power:	3KW
Cooling method:	automatic liquid cooling
Lubrication method:	centralized intermittent oil lubrication
control system	SZGH-1000TDb-5
Gross machine weight:	1800-2200kg
Machine size:	L1900W1330H1920mm
Tool:	Tool rest 3, extension rod 2

Product advantages of SZGH-36Y turning and milling machine tool：

The machine is also highly durable and built to last. It is designed with high-quality materials and components to ensure consistent performance over an extended period of time. This means that business owners can expect to get a great return on their investment, as the machine is built to deliver reliable results year after year.

In addition, the SZGH-36Y turning and milling machine is easy to operate and maintain. It comes with user-friendly software and controls that enable operators to quickly and efficiently set up and run the machine. Maintenance is also simple and straightforward, as the machine is designed to be easy to clean and service.

Overall, the SZGH-36Y turning and milling machine is an excellent choice for any business looking to improve its manufacturing capabilities and overall efficiency. With its advanced features, durability, and ease of use, it is sure to become a valuable asset to any operation. So if you're looking to take your business to the next level, it's time to invest in the SZGH-36Y turning and milling machine.
